SKU: H693

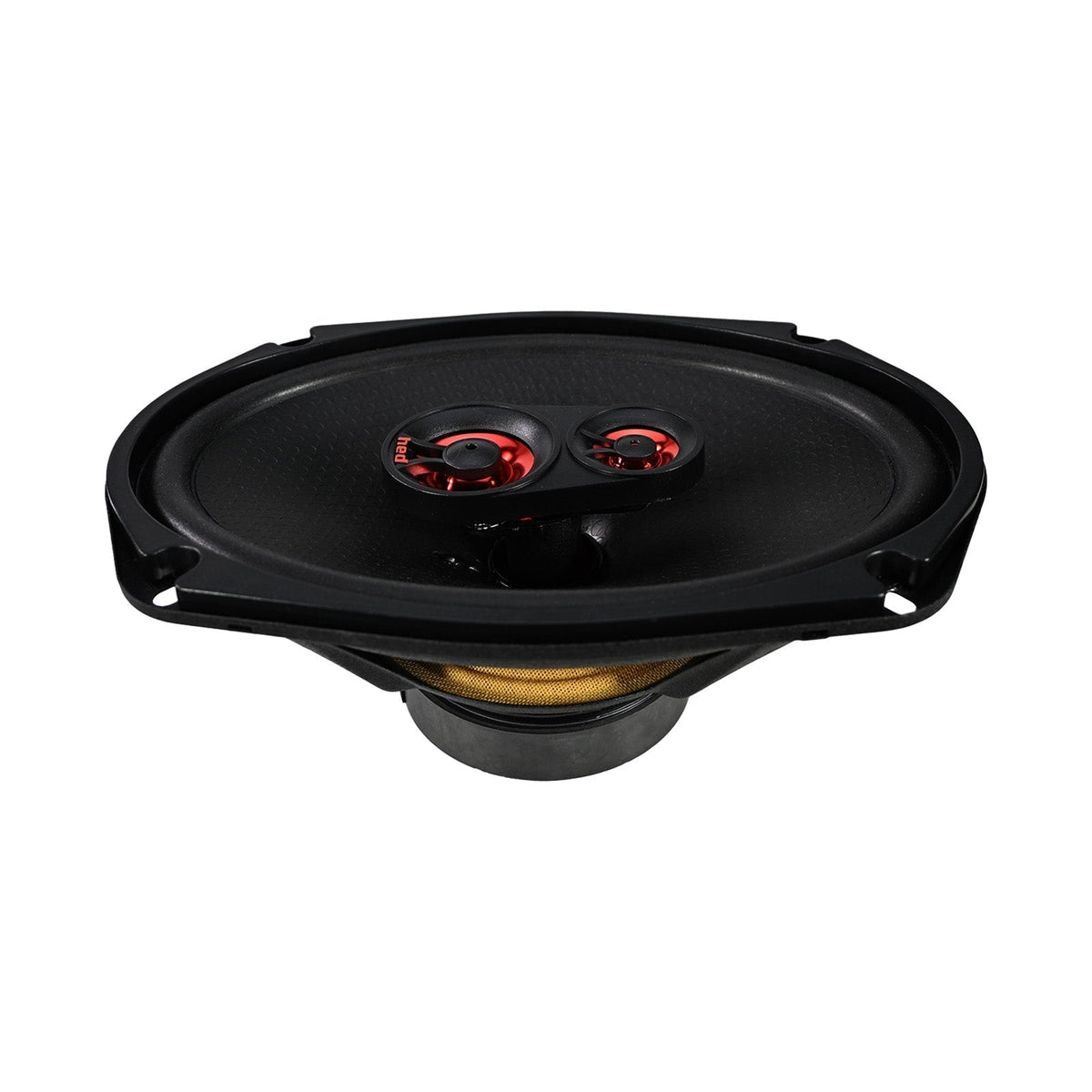

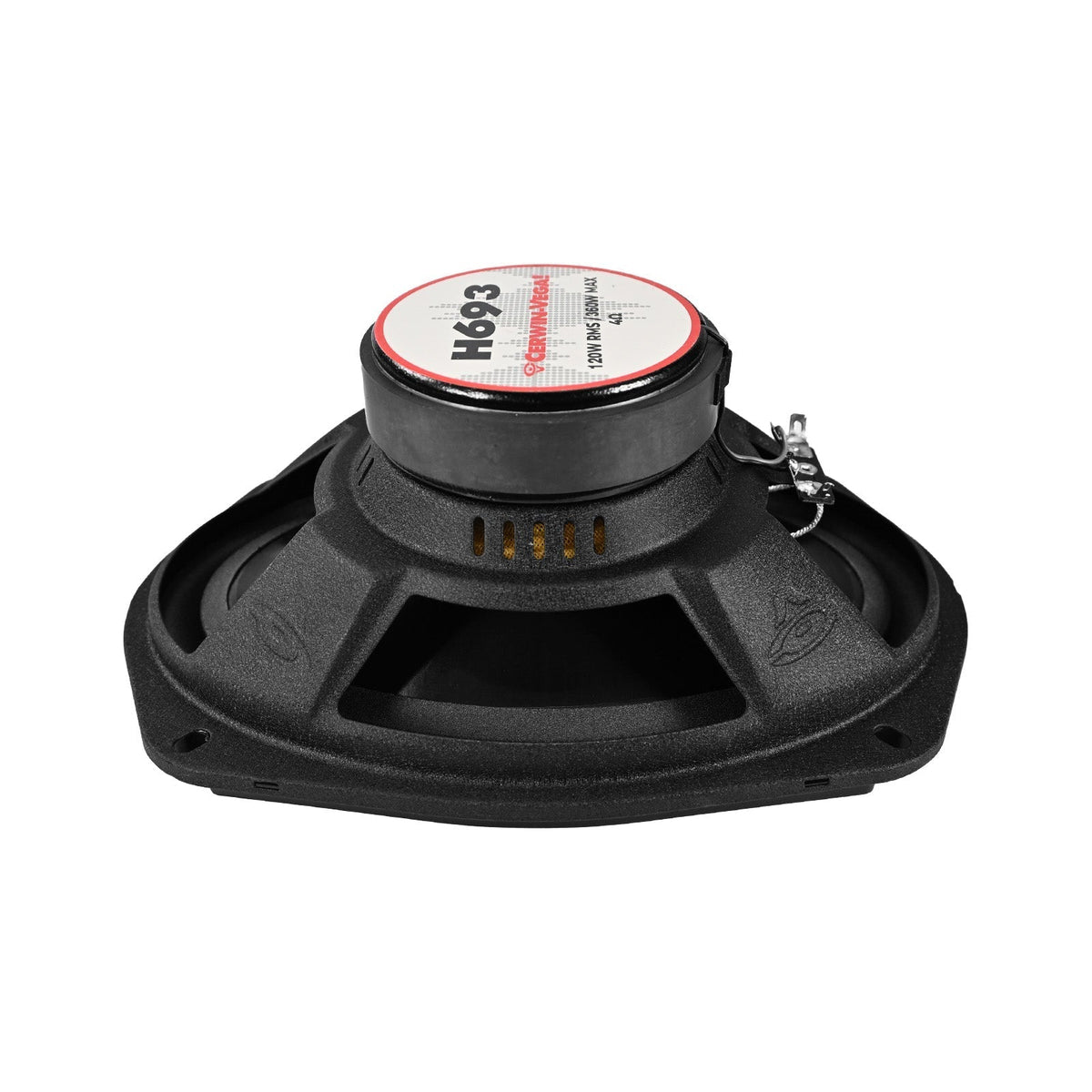

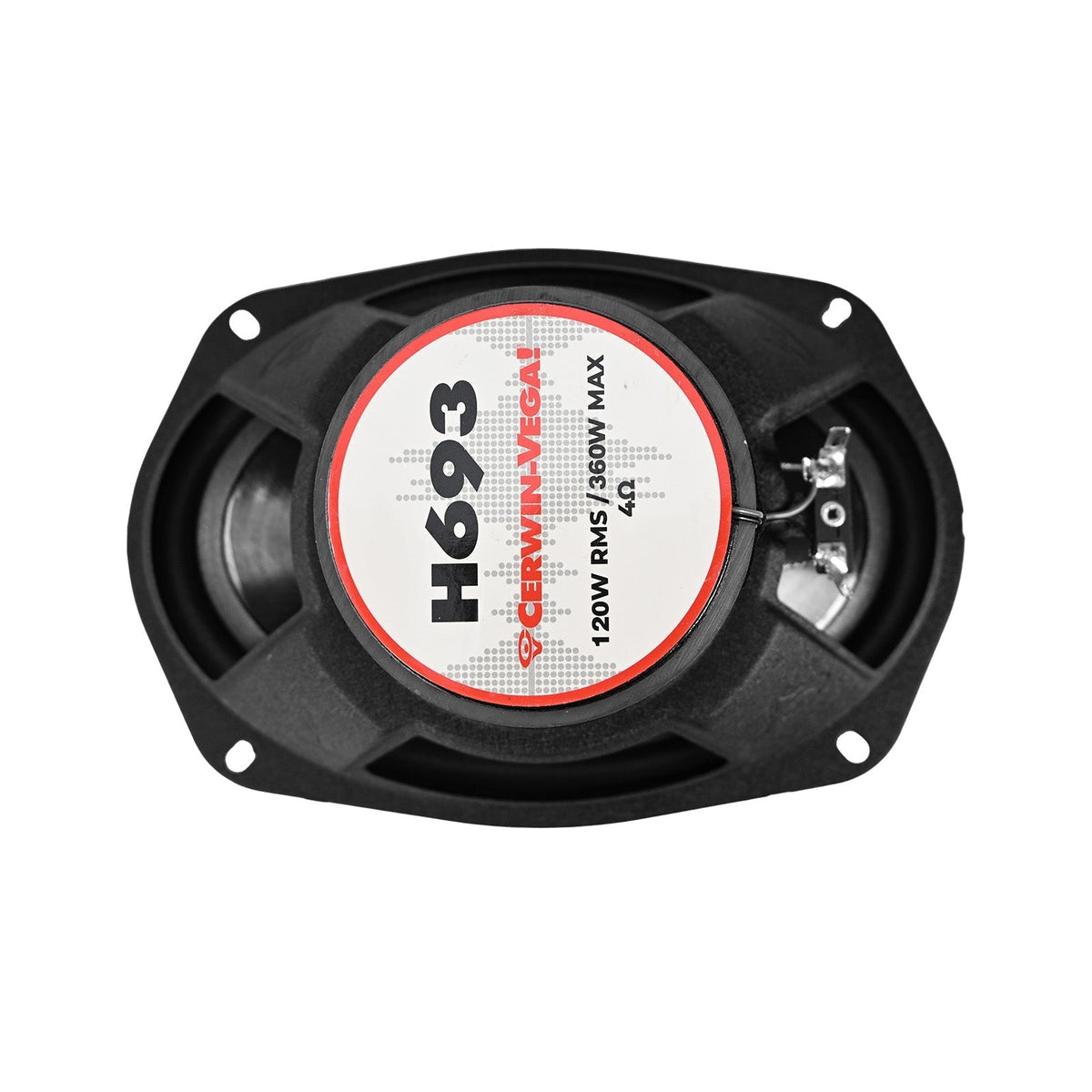

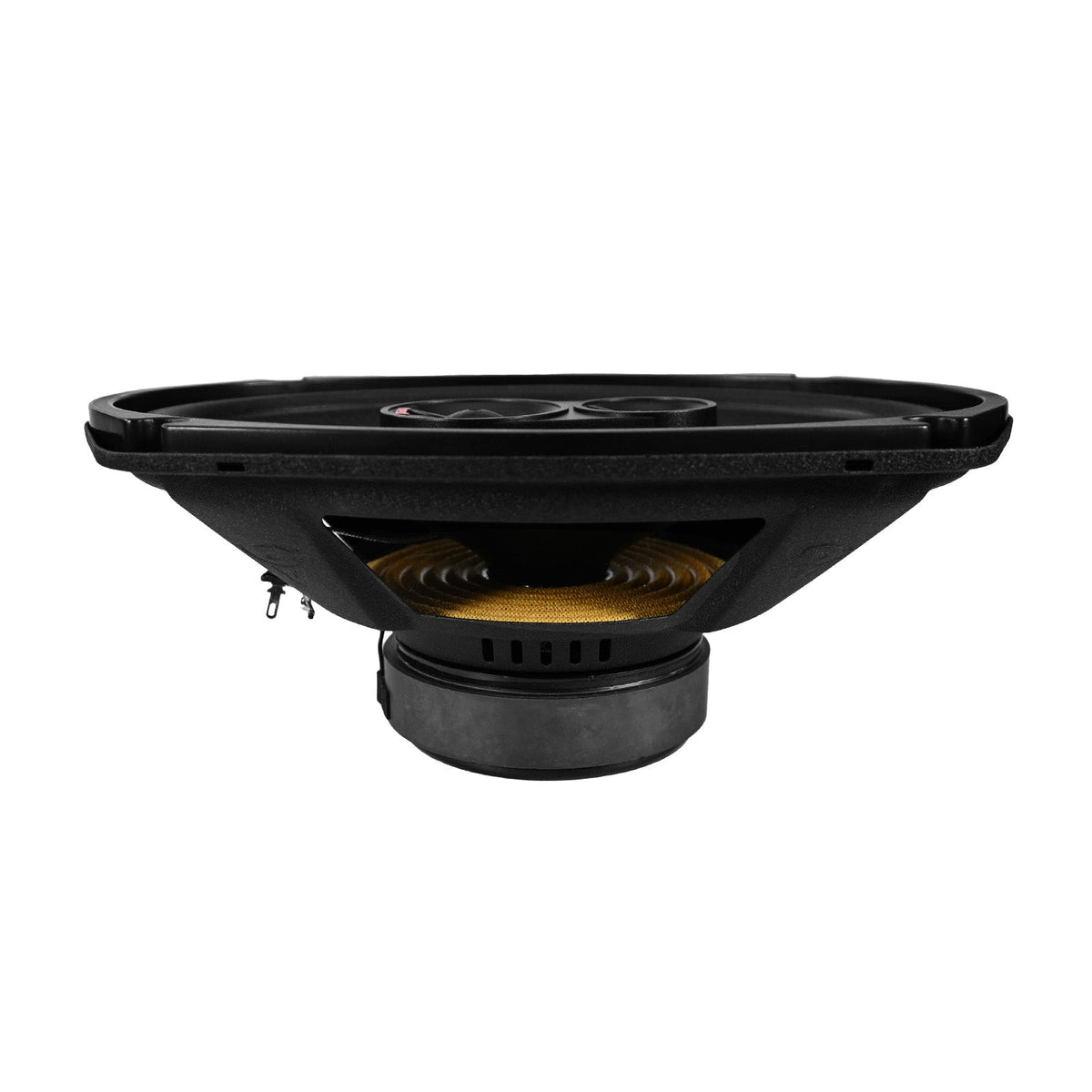

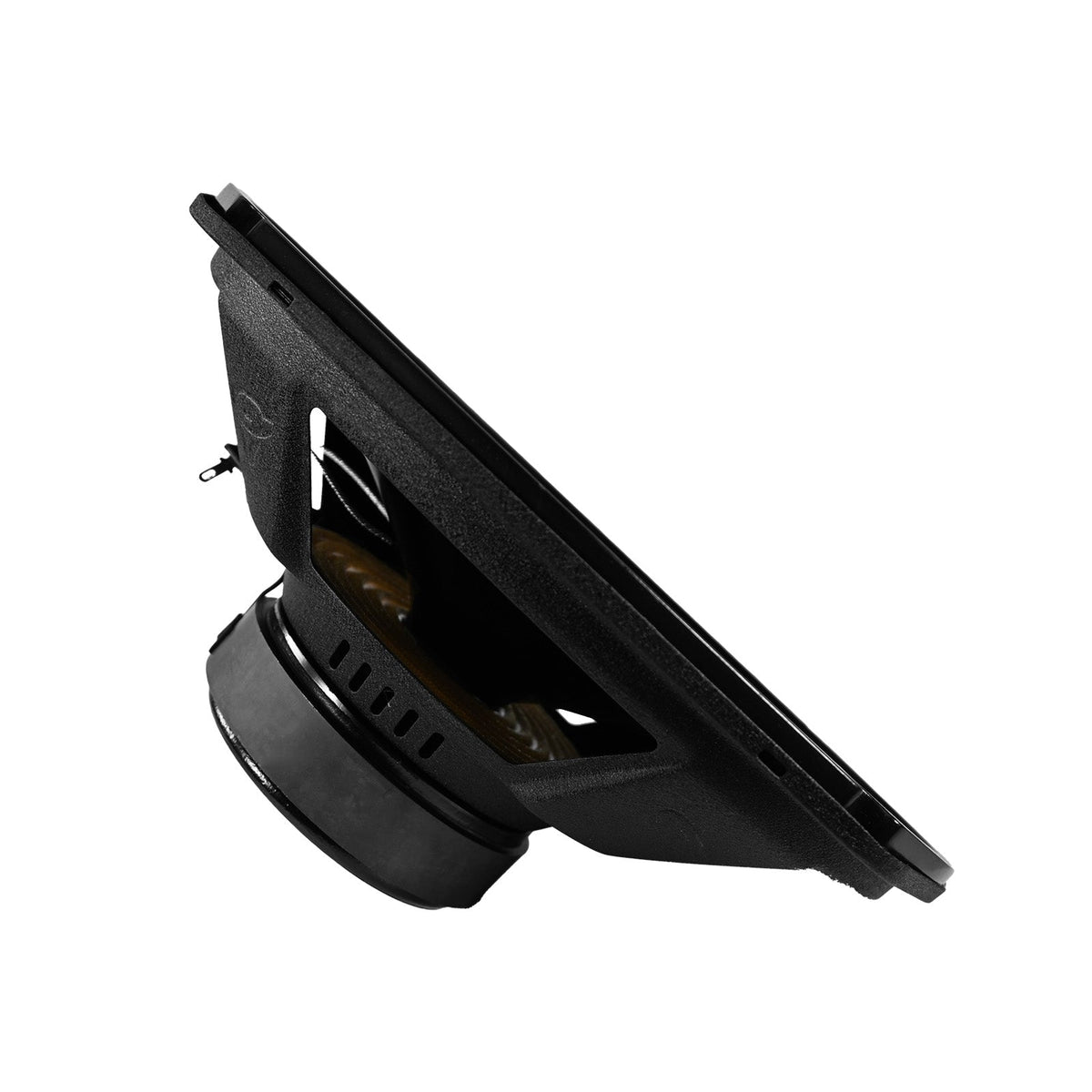

HED Series 6x9 Inch 3-Way Triaxial Speakers H693

Sale price$199.00 AUD
In stock

Also available through authorised Australian stockists.

Find a Stockist

Overview

6"× 9” 3-Way Coaxial Full Range Speaker System

Unleash the full potential of your sound system with the Cerwin Vega HED 2025 Edition H693, a 6x9” 3-way coaxial full-range speaker system designed to bring out the best in your music. The H693 offers superior audio clarity and dynamic sound performance, combining deep, punchy bass, smooth midrange, and crisp, brilliant highs into one high-quality coaxial speaker. Part of the renowned HED Series, it ensures a powerful and balanced audio experience, no matter the genre of music.

3-Way Coaxial Design for Complete Sound Spectrum

The H693 features a 6x9” woofer, 2.5” midrange, and 1” PEI tweeter, ensuring full-range audio coverage from deep bass to crystal-clear treble. The polypropylene cone provides precise bass and smooth midrange frequencies, while the UV-treated foam surround ensures long-lasting durability. The dynamically balanced 1” PEI tweeter delivers brilliant, high-frequency detail, completing the dynamic, well-rounded sound profile.

HED Series Features

  • 6X9” Woofer, 2.5” Midrange, & 1” PEI Tweeter – A 3-way coaxial design that delivers a comprehensive, full-range sound, covering bass, midrange, and high frequencies with exceptional detail.
  • Responsive Polypropylene Cone – Offers precise bass and smooth midrange, providing a balanced audio experience with deep, rich sound.
  • UV-Treated Foam Surround – Adds durability and reliability, keeping the sound crisp and clear over time.
  • Dynamically Balanced 1” PEI Tweeter – Delivers high-frequency clarity with minimal distortion, producing bright, crisp highs for an immersive listening experience.
  • Integrated Crossover with Tweeter Protection – Ensures smooth transitions between frequencies and protects the tweeter from distortion, even at high volumes.
  • Strontium Ferrite Woofer Magnet – Provides deep, powerful bass and midrange response, adding richness and warmth to the overall sound.
  • Powder-Coated, Rigid Stamped Steel Basket – Reduces unwanted vibrations and distortion, providing stable, distortion-free sound for a superior audio experience.
  • Sold in Pairs – Ideal for those looking to upgrade or build a high-performance sound system with premium coaxial speakers.

The H693 is perfect for audiophiles and music enthusiasts seeking a premium, full-range speaker system. Whether you're replacing factory speakers or designing a custom audio system, the H693 delivers the rich, dynamic sound you crave, with punchy bass, smooth mids, and brilliant highs. Step into the HED Series and enjoy a complete, immersive audio experience that makes every drive an unforgettable journey.

Specifications

Woofer Diameter
6x9 Inch (164 x 235.5mm)
Tweeter Diameter
1 Inch (25mm)
Speaker Type
Coaxial
Configuration
3-Way
Impedance
4 Ohm
RMS Power
120W
Peak Power
360W
Frequency Response
90Hz - 20kHz
Sensitivity
90dB
Mounting Diameter
236mm x 162.5mm
Mounting Depth
90mm
Grilles
Included
Sold As
Pair
Crossover
Integrated
Tweeter Style
Plastic
Tweeter Material
PEI
Tweeter Mount
Fixed
Tweeter Swivel
No
Tweeter Level Adjust
No
Bi-amp Capable
No
Multifit Midrange
No

Specifications supplied by the manufacturer and subject to change.
