SKU: H683

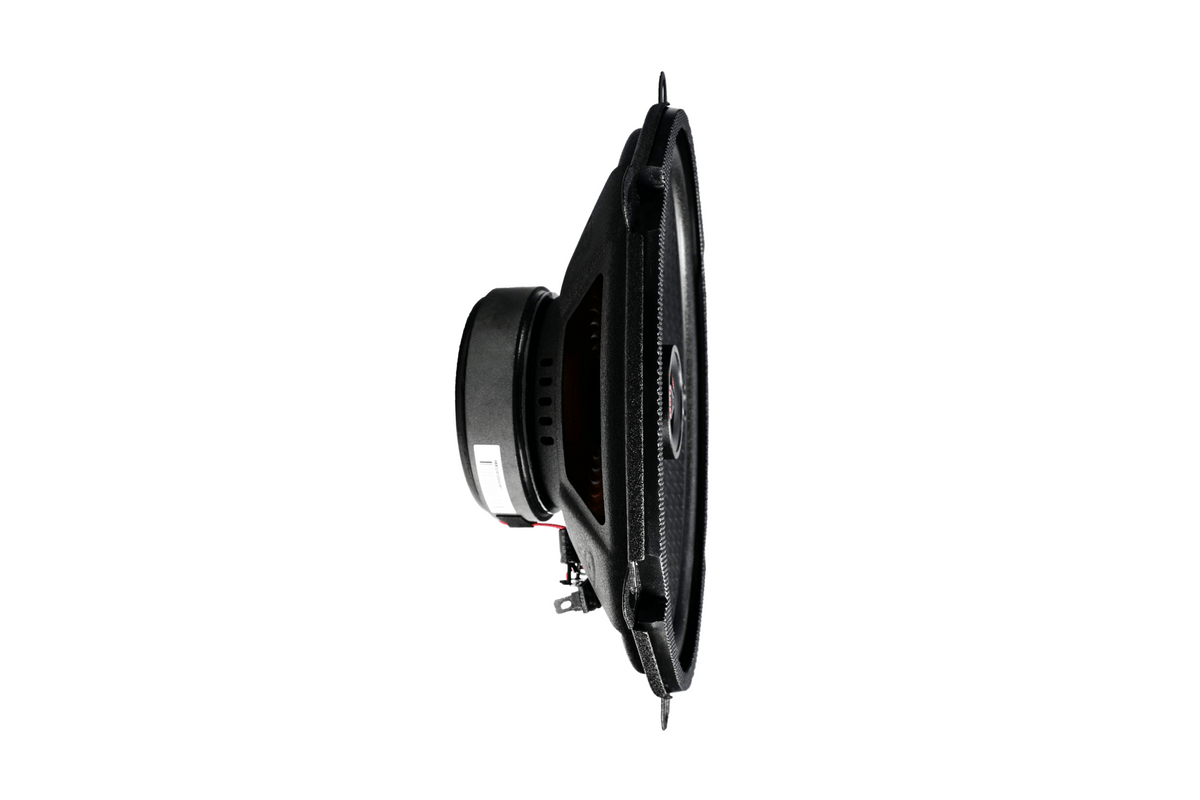

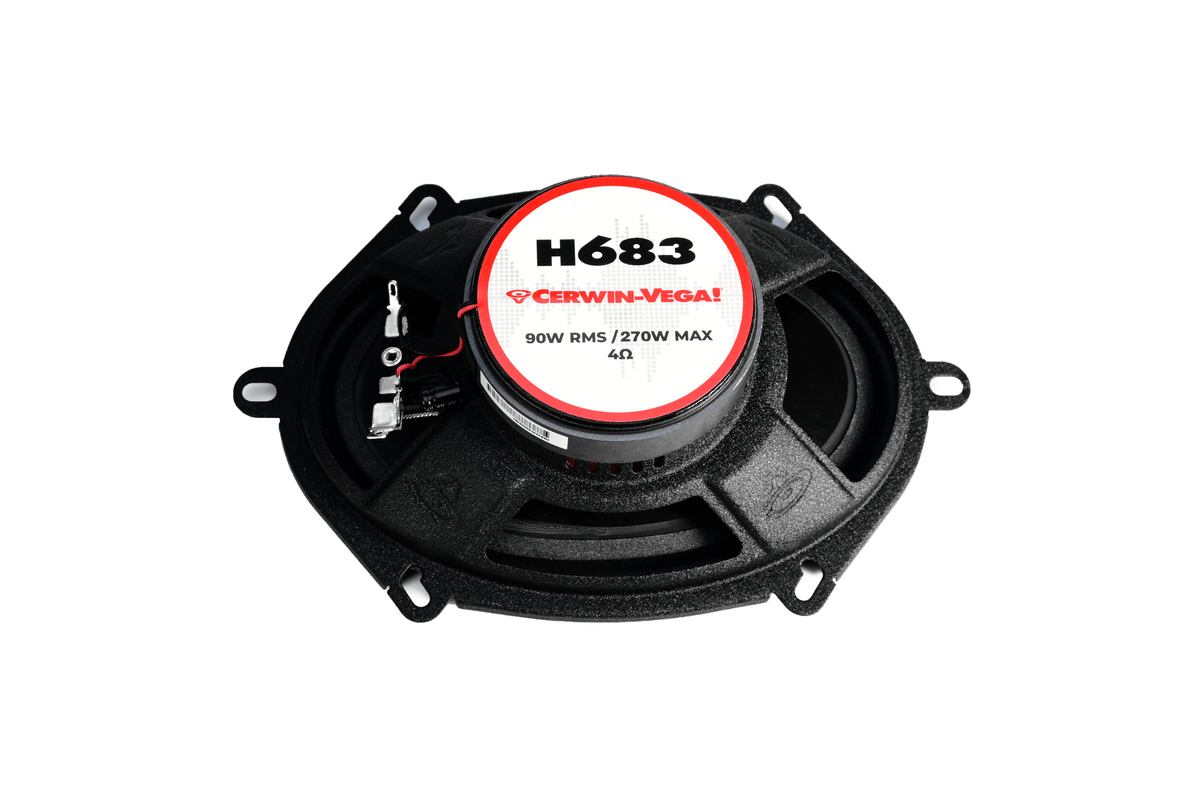

HED Series 6x8 Inch 3-Way Triaxial Speakers H683

Sale price$179.00 AUD
In stock

Also available through authorised Australian stockists.

Find a Stockist

Overview

6"× 8” 3-Way Coaxial Full Range Speaker System

Transform your car audio experience with the Cerwin Vega HED 2025 Edition H683, a 6x8” 3-way coaxial full-range speaker system that delivers an exceptional, balanced sound for audiophiles and music lovers alike. The H683 combines advanced design and powerful components to produce deep bass, vibrant midrange, and crystal-clear highs, ensuring every note is delivered with precision and clarity. Part of the HED Series, this speaker brings premium sound quality to your ride, turning every journey into an immersive sonic experience.

3-Way Coaxial Design for Full-Range Performance

The H683 features a 6x8” woofer, 2.5” midrange, and 1” PEI tweeter, creating a comprehensive audio spectrum that covers all frequencies with outstanding detail and clarity. The polypropylene cone offers accurate, deep bass and smooth midrange, while the UV-treated foam surround provides durability. The dynamically balanced 1” PEI tweeter, powered by a neodymium magnet, produces bright, crisp highs, completing the full-range sound profile with exceptional clarity.

HED Series Features

  • 6X8” Woofer, 2.5” Midrange, & 1” PEI Tweeter – A 3-way coaxial design that covers all frequencies for full-range sound, from deep bass to clear, detailed highs.
  • Responsive Polypropylene Cone – Delivers precise, low-end bass and smooth midrange frequencies, offering a balanced and dynamic sound.
  • UV-Treated Foam Surround – Ensures durability, providing long-lasting reliability and high-performance sound in any environment.
  • Dynamically Balanced 1” PEI Tweeter – Produces bright, distortion-free highs with excellent clarity, adding brilliance to your sound system.
  • Integrated Crossover with Tweeter Protection – Ensures smooth frequency transitions while protecting the tweeter from distortion at high volumes.
  • Strontium Ferrite Woofer Magnet – Delivers powerful bass and midrange response, adding depth and warmth to your music.
  • Powder-Coated, Rigid Stamped Steel Basket – Reduces unwanted vibrations and distortion, ensuring a stable and distortion-free sound.
  • Sold in Pairs – Perfect for building or upgrading a high-quality audio system with a full-range, 3-way coaxial speaker solution.

The H683 is designed for those who want the ultimate in sound quality and performance. Whether you're replacing factory speakers or looking to upgrade your custom audio system, the H683 provides the clear, powerful, and immersive sound you've been searching for. Experience the HED Series and enjoy the rich, dynamic audio that brings your music to life with every drive.

Specifications

Woofer Diameter
6x8 Inch (160 x 203mm)
Tweeter Diameter
1 Inch (25mm)
Speaker Type
Coaxial
Configuration
2-Way
Impedance
4 Ohm
RMS Power
45W
Peak Power
140W
Frequency Response
87Hz - 20kHz
Sensitivity
87dB
Mounting Diameter
96 x 239mm
Mounting Depth
58mm
Grilles
Not included
Sold As
Pair
Crossover
Integrated
Tweeter Style
Plastic
Tweeter Material
PEI
Tweeter Mount
Fixed
Tweeter Swivel
No
Tweeter Level Adjust
No
Bi-amp Capable
No
Multifit Midrange
No

Specifications supplied by the manufacturer and subject to change.
